How to Install Apache Flink On Local Windows

Hey, Tea Lovers! In this post, we will be talking about how to install Apache Flink on the local Windows machine. It will be a very quick guide We will be installing the latest version of Apache Flink 1.12.1, though it applies to all the versions and possibly any newer one too.

For other OS installations, I have written the following posts.

For Mac OS refer to How to Install Apache Flink On Mac OS

And Ubuntu Flink Installation can be found on How to Install Apache Flink On Ubuntu.

I would be happy to connect with you guys on social media. It’s @coderstea on Twitter, Linkedin, Facebook, Instagram, and YouTube.

Please Subscribe to the newsletter to know about the latest posts from CodersTea.

Requirements to Install Apache Flink on Windows

Installing and running Apache Flink on a local Windows machine requires the following things.

Windows 10

We need Windows 10 with the Windows Subsystem for Linux (WSL). But if your version of Flink binary has .bat files, then you don’t need these and can use another Windows version and run with cmd. But the version I am using only has the .sh files.

Java

The second requirement is Java. Java version 8 or 11 is recommended. It doesn’t matter if you use OpenJDK or Oracle-provided Java on the machine.

Verify your java with java -version. Also, make sure you set up your Environment Variable JAVA_HOME otherwise, the Flink won’t create any Job.

To install and set up Java in WSL with Ubuntu, you can check the following post.

How to Install Latest Java and Set JAVA_HOME on Ubuntu

For the Java installation and setup on Windows only, you can check the following post.

“Install Latest or Any Java Version in 3 Simple Steps: Windows“.

Make sure your JAVA_HOME path doesn’t contain any space or it won’t start.

Issue with JVM when starting Flink Cluster

Download Latest Apache Flink on Local Windows

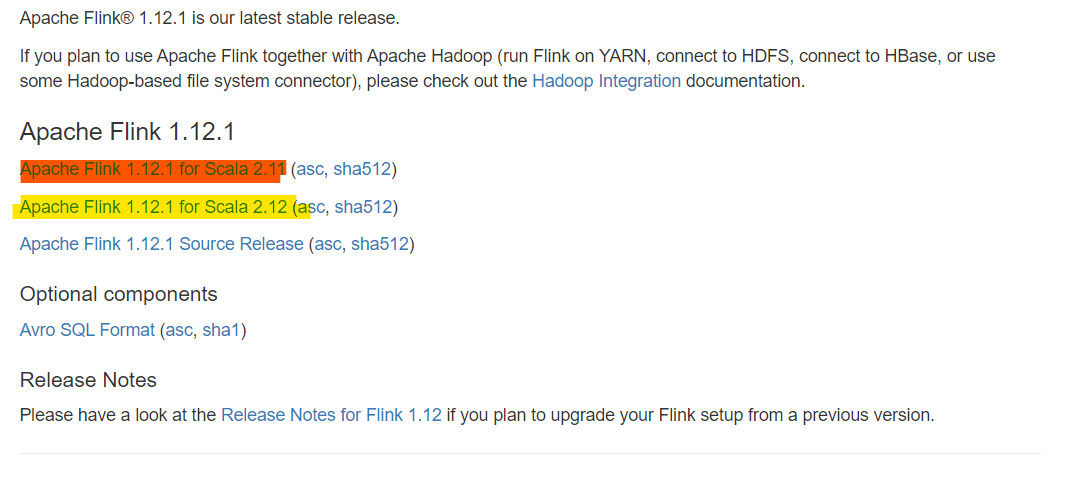

Now that the requirement is fulfilled, let’s jump to the next part. As I said earlier I will be installing Apache Flink version 1.2.1 for this post. To get the list of all Flink binaries available to download, head over to this link. Select the version you want to choose and download.

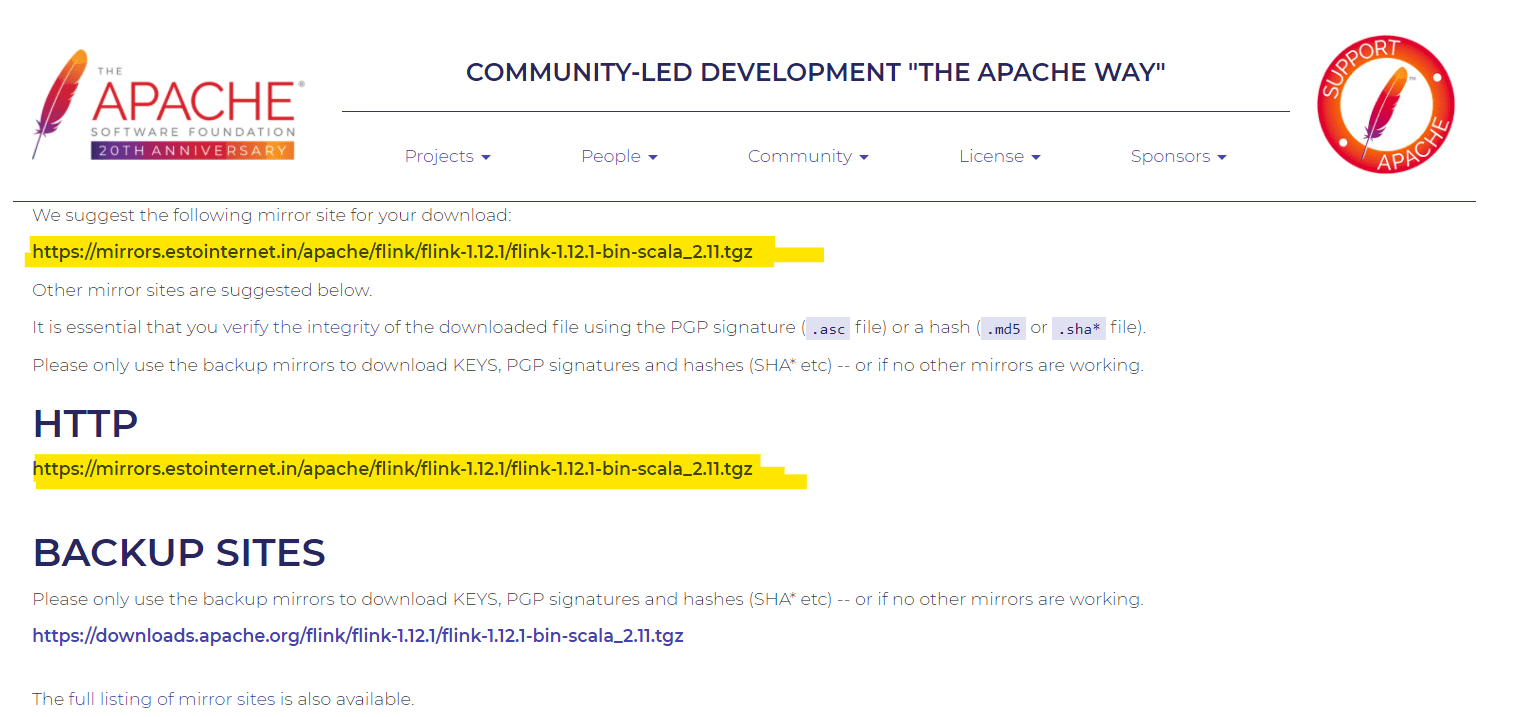

You may be redirected to another page and in the 1st paragraph, you can see the mirror download link.

Download Old Stable Apache Flink on Local Windows

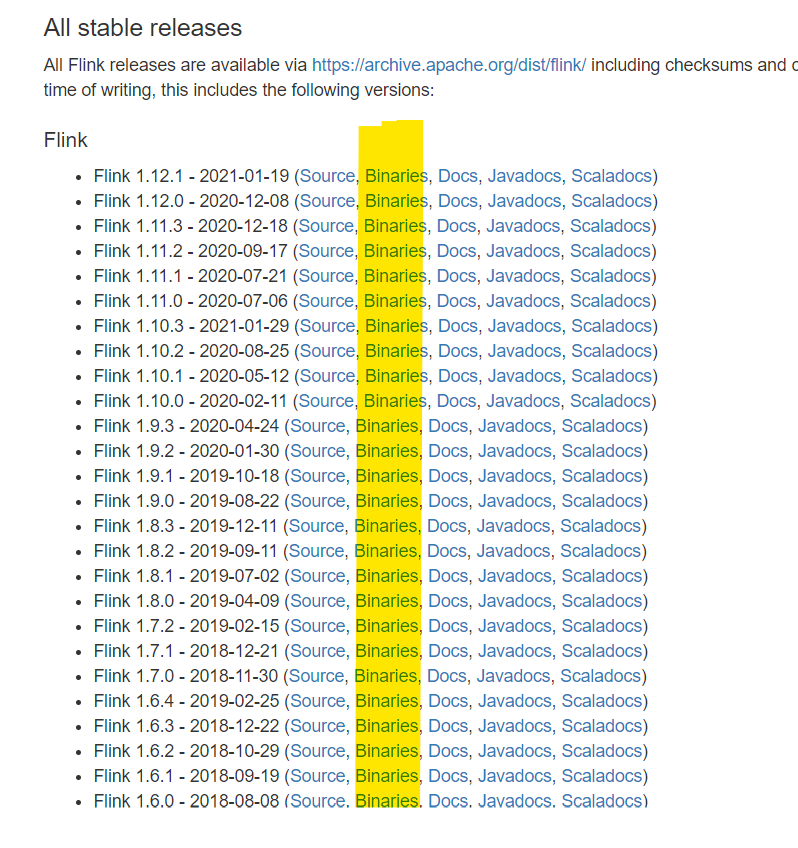

For the latest release, we can just look in the first paragraph for the link. But for the old release like Flink Version 1.7.1, you need to select from the old stable release list present on the same page. From the list select the binaries in front of the desired version and then download a binary file that contains the -bin-scala_ in the name.

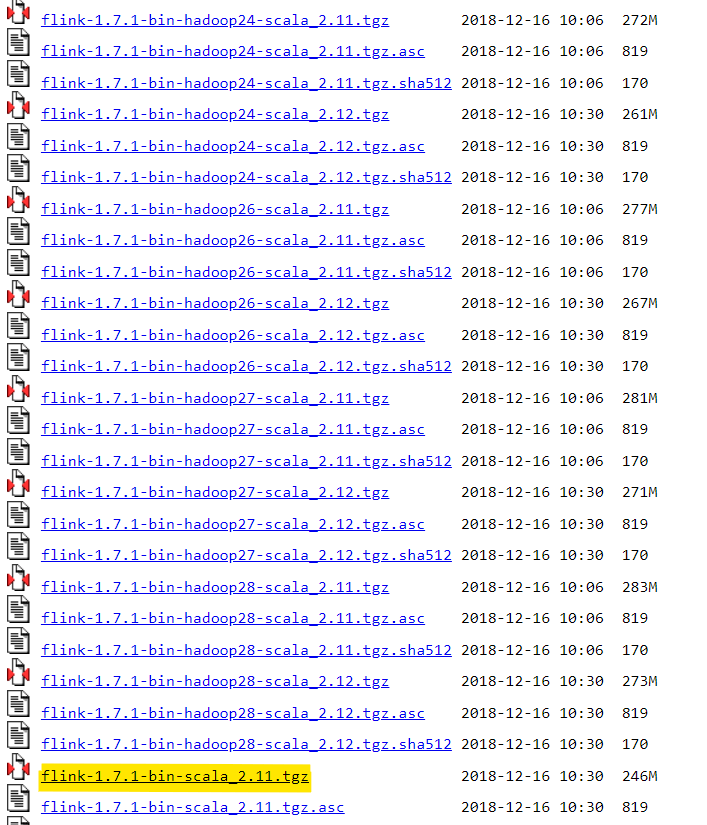

I will be selecting Flink Version 1.7.1 for download. and then select the -bin-scala_ file (without Hadoop as I don’t need it)

Start and Stop Apache Flink Cluster on Local Windows

Now that we have downloaded the Apache Flink binaries, let’s extract the tar file and copy it to a more appropriate location, any location would be fine, I will be putting it on D:\programs\apache-flink\flink-1.12.1. But in WSL the path will be, /mnt/d/programs/apache-flink/flink-1.12.1.

In the terminal, WSL, run the cluster with the following command.

./bin/start-cluster.sh

If it is successful then you will see a cluster start to message and the cluster will run in the background.

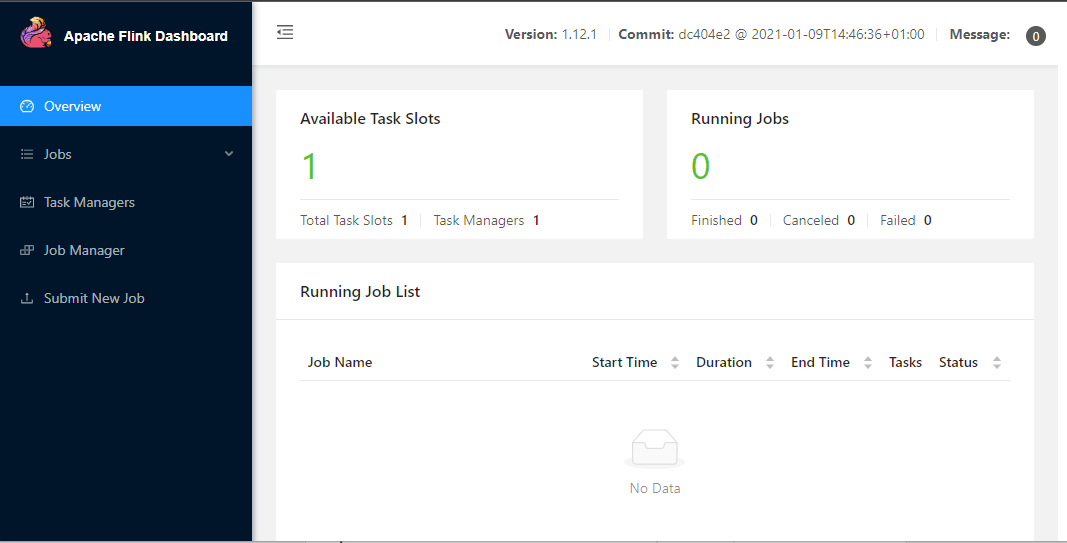

Then simply go to the localhost:8081 to access the Flink UI Dashboard.

To stop the cluster use the following command.

./bin/stop-cluster.sh

Run a Flink Job on Cluster

There are 2 ways you can run a Flink Job on the cluster. UI and via command.

Run Flink Job via Flink Dashboard

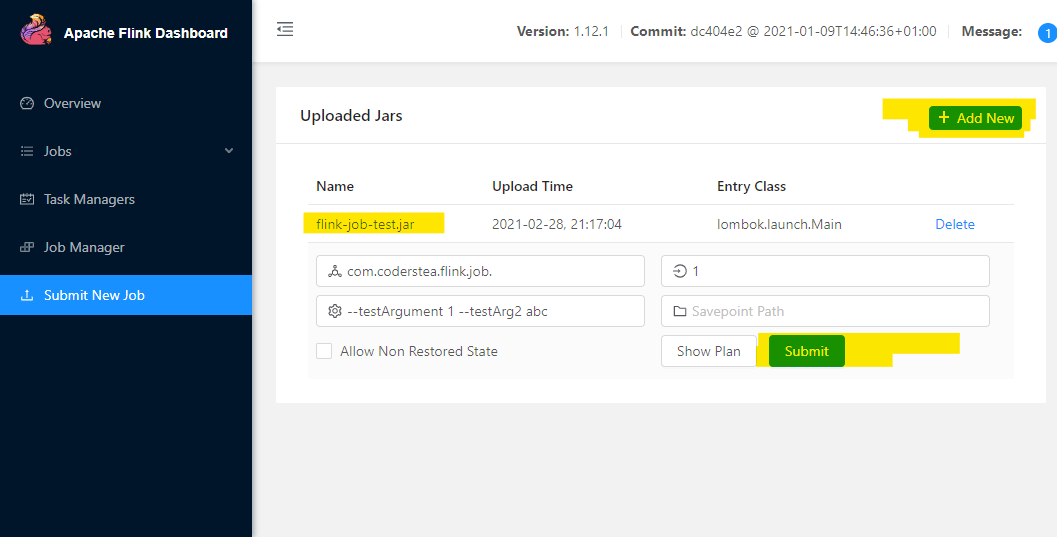

The simplest way is to use the UI. First, in the dashboard, go to the Submit New Job page and upload the Jar. Next, select the Jar from the list, and pass the Main class, the argument of the program. Then, submit the job and it will redirect you to the running job page, where you will see the pipelines and their status.

Run a Flink Job via Terminal

The second way is to run it via the Terminal or Command-Line. You can use the following command to run the Flink Job.

./bin/flink run \
    --detached \
    /path/to/jar/SampleFlinkJob.jar

This will run the Flink job in the background. You can then check the status in the Flink Dashboard, on localhost, if it runs successfully.

Conclusion

That’s it for this post. This post is focused on Flink Version 1.12.1 and running it onWindows Subsystem for Linux (WSL). But As I said, if your required Flink Version can be run directly on the WIndows, it is great. Keep in mind to set up the JAVA_HOME properly and make sure the JAVA_HOME path doesn’t contain any space in it. You can also check out my other post “How to Select Specific Folders or Files As Input in Flink” and the code is on  GitHub.

See you in the next post.

HAKUNA MATATA!!!
